3M0SG3E-16LA60TT0

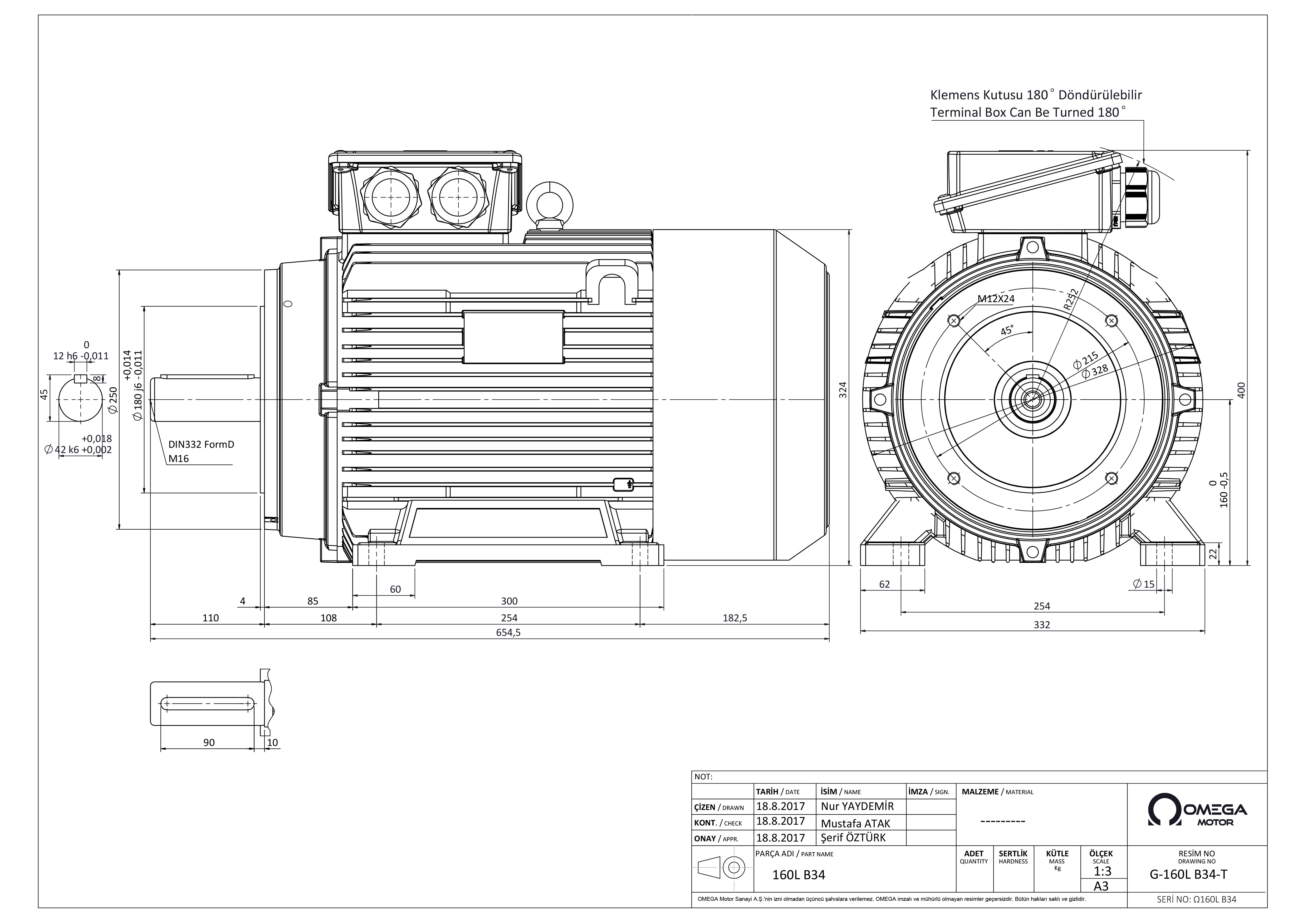

IE3 11kW 1000rpm, GG20 160L6, 3Ph 50Hz 400V/690V D/Y, IMB34

Motor Type3MGS 160L6
Mounting MethodIMB34
Terminal Box Location
Efficiency ClassIE3
Output Power11,00 kW
Synchronous Speed1000 rpm
Body MaterialGG20
Body Size160L6
Phase3
Frequency50
Voltage400 / 690 V (D/Y)
Product Code3M0SG3E-16LA60TT0
Motor Type3MGS 160L6
Mounting MethodIMB34
Terminal Box LocationÜstte
Efficiency ClassIE3
Output Power11,00 kW
Synchronous Speed1000 rpm
Body MaterialGG20
Body Size160L6
Phase3
Frequency50
Voltage400 / 690 V (D/Y)
Number of Poles6
Current22,84 / 13,24 A ( / )
Torque107,60 Nm
Moment of Inertia0,142 kg.m²
Load 4/4 100% Load 3/4 75% Load 2/4 50% Load
Efficiency90,3 %90,8 % 90,3 %
Power Factor0,770,71 0,59
Starting Current6,9
Starting Moment2,0
Breakdown Torque3,2
Protection DegreeIP 55
Insulation ClassF F
Temperature Increase ClassB B
Ambient Temperature-20°C +40°C
Altitude1000
Cooling MethodIC 411
Noise of Level60 dB
Vibration ClassDerece A
Duty TypeS1
Service Factor1,15
Motor Rotation Direction
Approximate Rotor Weight44,0 kg
Approximate Motor Weight139,0 kg
Bearings Ön (6204 ZZ/CM) Arka (6204 ZZ/CM)
Relubrication Period--
Grease Volume--
Grease Type-
Code Optional Status
A01 Overseas shipment packaging On Request.
A02 Overseas shipment packaging, wood On Request.
A03 Packaging of motor in vertical mounting position On Request.
Code Optional Status
B01 Vibration level Class B according to IEC 60034-14 On Request.
B11 Full-key balancing On Request.
B12 Balance without key On Request.
Code Optional Status
B50 Unpainted motor (just for aluminum frames) On Request.
B51 Primer paint only ( just for cast iron frames) On Request.
B52 Special paint color, standard RAL codes On Request.
B53 Painting class C5 On Request.
Code Optional Status
E01 Stainless material, on the right (DE side) On Request.
E02 Stainless material, on the left (DE side) On Request.
E03 Aluminum material, on the left (DE side) On Request.
E04 2nd Label, aluminum material, mounted on the motor On Request.
E05 2nd Label, stainless material, mounted on the motor On Request.
E06 2nd Label, aluminum material, demounted On Request.
E07 2nd Label, stainless material, demounted On Request.
E08 Additional text up to 20 characters on the standard label On Request.
Code Optional Status
S01 IC 416 Cooling method, forced cooling On Request.
S02 IC 410 Cooling method, without fan On Request.
S03 IC 418 Cooling method, with driven fan driven On Request.
Code Optional Status
T60 KTY 84 - 130, in stator windings On Request.
T02 Test report for any motor from any delivery batch On Request.
T01 Type test report for any motor from any delivery batch On Request.
T03 High voltage test On Request.
T20 PTC Thermistor, 130°C, 3, in stator windings On Request.
T22 PTC Thermistor, 150°C, 3, in stator windings On Request.
T21 PTC Thermistor, 170°C, 3, in stator windings On Request.
T30 PTC Thermistor, 130°C and 150°C, 3, in stator windings On Request.
T31 PTC Thermistor, 150°C and 170°C, 3, in stator windings On Request.
T40 PT100, 2 wires, stator windings On Request.
T50 PT100, 3 wires, stator windings On Request.
R40 PT100, 2 wires, bearings On Request.
R50 PT100, 3 wires, bearings On Request.
Code Optional Status
H01 Anti-condensation heater, 100V-120V On Request.
H02 Anti-condensation heater, 200V-240V On Request.
Code Optional Status
K50 Brass cable glands On Request.
K51 Stainless steel cable glands On Request.
Code Optional Status
M01 Shaft material stainless steel material On Request.
M20 Shaft extension with open key slot On Request.
M21 With a half key at the shaft end On Request.
M22 Without key slot at the shaft end On Request.
M29 Shaft ends on both sides, special sizes On Request.
M30 Shaft ends on both sides, sizes indicated in the catalog On Request.
M31 Special shaft end sizes, on the front side, standard materials On Request.
M32 Special shaft end sizes, on the rear side, standard materials On Request.
M33 Special shaft material as per customer requirements On Request.
Code Optional Status
K01 Protection Degree, IP 56 On Request.
K02 Protection Degree, IP 65 On Request.
K03 Protection Degree, IP 66 On Request.
K10 Radial grease seal, on the front side On Request.
K20 Canopy On Request.
Code Optional Status
R01 Transport locking on bearings On Request.
R02 Vibration measurement nipples compatible with SPM On Request.
R10 Lubrication nipples and relubricapable bearings On Request.
R17 Full closed bearings lubricated by the manufacturer for lifetime (ZZ) As Standart.
R11 Cylindrical roller bearing, DE side On Request.
R12 Angular contact ball bearing, shaft force towards bearing On Request.
R13 Angular contact ball bearing, shaft force away from bearing On Request.
R14 Identical bearings on DE and NDE side On Request.
R15 Isolated bearing, NDE side On Request.
R16 Isolated endshield, NDE side On Request.
R19 Sealed bearings (2RS) On Request.
R20 DE bearing locked On Request.
R21 NDE bearing locked As Standart.
Code Optional Status
E50 1024 Pulse encoder On Request.
Code Optional Status
F01 Electromagnetic brake On Request.
Code Optional Status
X01 Ambient temperature from -40°C to 40°C, internal On Request.
X07 Ambient temperature from -55°C to 40°C, internal On Request.
X08 Ambient temperature from -20°C to 60°C, internal On Request.
X02 Stator and rotor package protected against corrosion On Request.
X03 Bolts, stainless steel, or protected against acid On Request.
X04 Additional eyebolt on the top of frame, cast iron frames On Request.
X05 Additional eyebolt on the bottom of frame, cast iron frames On Request.
X06 Additional eyebolt on the top of frame, aluminium framess On Request.
P02 Special windings as per special frequency and voltage values On Request.
Code Optional Status
T01 Type test report for any motor from any delivery batch On Request.
T02 Test report for any motor from any delivery batch On Request.
T03 High voltage test On Request.
T04 Vibration class test On Request.
T05 Noise level test for any motor from any delivery batch On Request.
Code Optional Status
C01 Additional grounding bolt, on the motor frame aluminum On Request.
C02 Additional grounding bolt, on the motor frame , cast iron On Request.
Code Optional Status
Y01 Class H class winding Insulation On Request.
Y02 Special insulation system for motors to be used with frequency convertor supply On Request.
