3M0SA3E-09LK21ST0

IE3 3kW 3000rpm, Al 90LK2, 3Ph 50Hz 230V/400V D/Y, IMB14

Motor Type	3MAS 90LK2
Mounting Method	IMB14
Terminal Box Location
Efficiency Class	IE3
Output Power	3,00 kW
Synchronous Speed	3000 rpm
Body Material	Al
Body Size	90LK2
Phase	3
Frequency	50
Voltage	230 / 400 V (D/Y)

Product Code	3M0SA3E-09LK21ST0
Motor Type	3MAS 90LK2
Mounting Method	IMB14
Terminal Box Location	Üstte
Efficiency Class	IE3
Output Power	3,00 kW
Synchronous Speed	3000 rpm
Body Material	Al
Body Size	90LK2
Phase	3
Frequency	50
Voltage	230 / 400 V (D/Y)
Number of Poles	2
Current	10,29 / 5,97 A ( / )
Torque	9,97 Nm
Moment of Inertia	0,0024 kg.m²
Load	4/4 100% Load	3/4 75% Load	2/4 50% Load
Efficiency	87,1 %	87,9 %	87,4 %
Power Factor	0,84	0,80	0,74
Starting Current	7,0
Starting Moment	2,7
Breakdown Torque	3,5
Protection Degree	IP 55
Insulation Class	F F
Temperature Increase Class	B B
Ambient Temperature	-20°C +40°C
Altitude	1000
Cooling Method	IC 411
Noise of Level	65 dB
Vibration Class	Derece A
Duty Type	S1
Service Factor	1,00
Motor Rotation Direction
Approximate Rotor Weight	5,2 kg
Approximate Motor Weight	18,1 kg
Bearings	Ön (6204 ZZ/CM)	Arka (6204 ZZ/CM)
Relubrication Period	-	-
Grease Volume	-	-
Grease Type	-

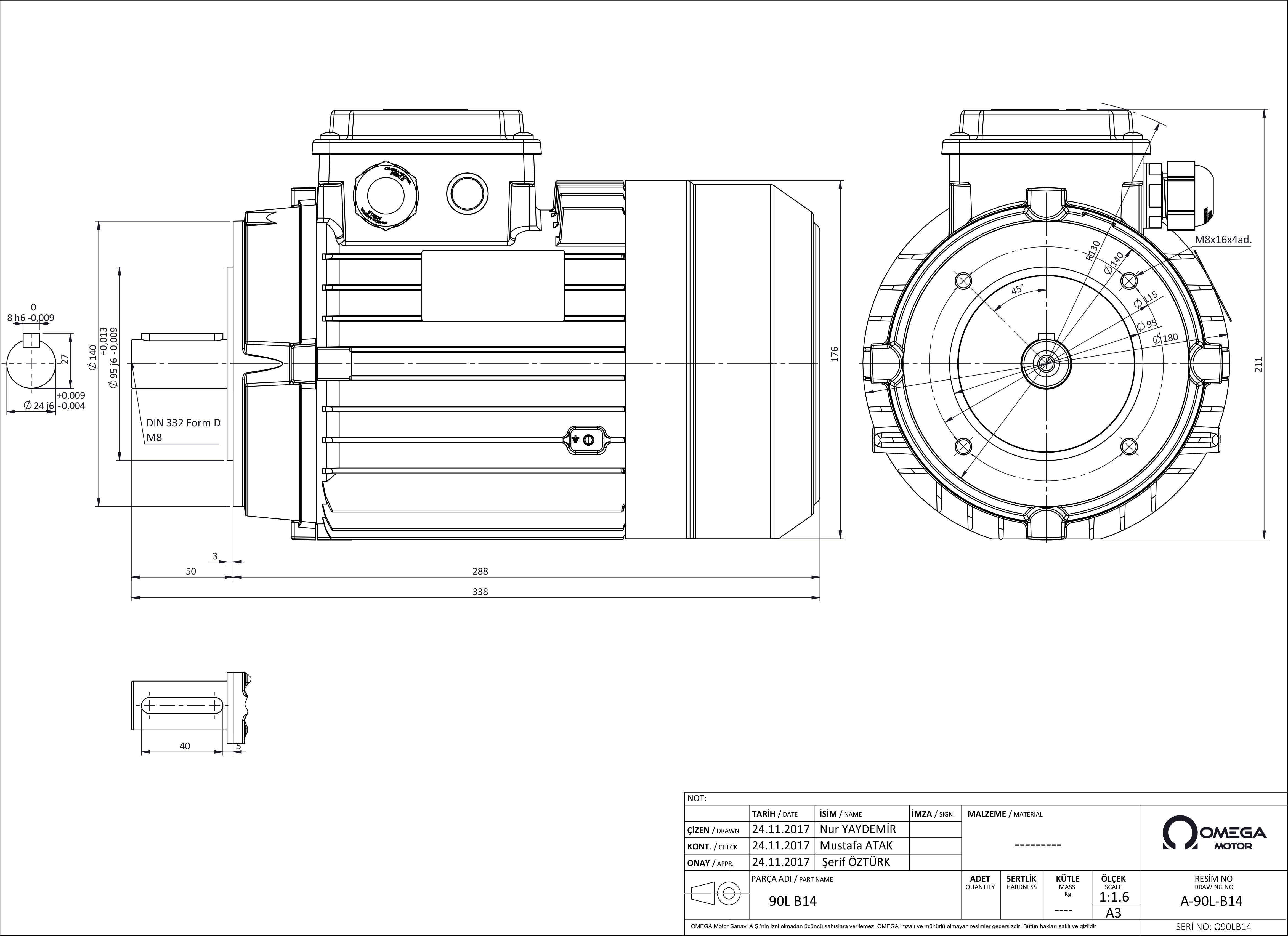

	3M0SA3E-09LK21ST0 Technical Drawings
	3M0SA3E-09LK21ST0 Teshnical Datasheet
	Product Catalog

Packaging

Code	Optional	Status
A01	Overseas shipment packaging	On Request.
A02	Overseas shipment packaging, wood	On Request.
A03	Packaging of motor in vertical mounting position	On Request.

Balancing

Code	Optional	Status
B01	Vibration level Class B according to IEC 60034-14	On Request.
B11	Full-key balancing	On Request.
B12	Balance without key	On Request.

Painting

Code	Optional	Status
B50	Unpainted motor (just for aluminum frames)	On Request.
B52	Special paint color, standard RAL codes	On Request.
B53	Painting class C5	On Request.

Name Plate

Code	Optional	Status
E01	Stainless material, on the right (DE side)	On Request.
E02	Stainless material, on the left (DE side)	On Request.
E03	Aluminum material, on the left (DE side)	On Request.
E04	2nd Label, aluminum material, mounted on the motor	On Request.
E05	2nd Label, stainless material, mounted on the motor	On Request.
E06	2nd Label, aluminum material, demounted	On Request.
E07	2nd Label, stainless material, demounted	On Request.
E08	Additional text up to 20 characters on the standard label	On Request.

Cooling

Code	Optional	Status
S01	IC 416 Cooling method, forced cooling	On Request.
S02	IC 410 Cooling method, without fan	On Request.
S03	IC 418 Cooling method, with driven fan driven	On Request.

Temperature Sensors

Code	Optional	Status
T60	KTY 84 - 130, in stator windings	On Request.
T02	Test report for any motor from any delivery batch	On Request.
T01	Type test report for any motor from any delivery batch	On Request.
T03	High voltage test	On Request.
T20	PTC Thermistor, 130°C, 3, in stator windings	On Request.
T22	PTC Thermistor, 150°C, 3, in stator windings	On Request.
T21	PTC Thermistor, 170°C, 3, in stator windings	On Request.
T30	PTC Thermistor, 130°C and 150°C, 3, in stator windings	On Request.
T31	PTC Thermistor, 150°C and 170°C, 3, in stator windings	On Request.
T40	PT100, 2 wires, stator windings	On Request.
T50	PT100, 3 wires, stator windings	On Request.

Heating Elements

Code	Optional	Status
H01	Anti-condensation heater, 100V-120V	On Request.
H02	Anti-condensation heater, 200V-240V	On Request.

Terminal box

Code	Optional	Status
K50	Brass cable glands	On Request.
K51	Stainless steel cable glands	On Request.

Shaft and Rotor

Code	Optional	Status
M01	Shaft material stainless steel material	On Request.
M20	Shaft extension with open key slot	On Request.
M21	With a half key at the shaft end	On Request.
M22	Without key slot at the shaft end	On Request.
M29	Shaft ends on both sides, special sizes	On Request.
M30	Shaft ends on both sides, sizes indicated in the catalog	On Request.
M31	Special shaft end sizes, on the front side, standard materials	On Request.
M32	Special shaft end sizes, on the rear side, standard materials	On Request.
M33	Special shaft material as per customer requirements	On Request.

Motor Protection

Code	Optional	Status
K01	Protection Degree, IP 56	On Request.
K02	Protection Degree, IP 65	On Request.
K03	Protection Degree, IP 66	On Request.
K10	Radial grease seal, on the front side	On Request.
K20	Canopy	On Request.

Bearing and Lubrication

Code	Optional	Status
R02	Vibration measurement nipples compatible with SPM	On Request.
R17	Full closed bearings lubricated by the manufacturer for lifetime (ZZ)	As Standart.
R14	Identical bearings on DE and NDE side	As Standart.
R19	Sealed bearings (2RS)	On Request.
R20	DE bearing locked	On Request.
R21	NDE bearing locked	On Request.

Encoder

Code	Optional	Status
E50	1024 Pulse encoder	On Request.

Brake

Code	Optional	Status
F01	Electromagnetic brake	On Request.

Standardized Features

Code	Optional	Status
X01	Ambient temperature from -40°C to 40°C, internal	On Request.
X07	Ambient temperature from -55°C to 40°C, internal	On Request.
X08	Ambient temperature from -20°C to 60°C, internal	On Request.
X02	Stator and rotor package protected against corrosion	On Request.
X03	Bolts, stainless steel, or protected against acid	On Request.
P02	Special windings as per special frequency and voltage values	On Request.

Test

Code	Optional	Status
T01	Type test report for any motor from any delivery batch	On Request.
T02	Test report for any motor from any delivery batch	On Request.
T03	High voltage test	On Request.
T04	Vibration class test	On Request.
T05	Noise level test for any motor from any delivery batch	On Request.

Earting Bolts

Code	Optional	Status
C01	Additional grounding bolt, on the motor frame aluminum	On Request.

Insulation System

Code	Optional	Status
Y01	Class H class winding Insulation	On Request.
Y02	Special insulation system for motors to be used with frequency convertor supply	On Request.
